    Rechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle Headlight

    Ask Lasest Price
    Brand Name : TAC OEM & ODM
    Model Number : ICR18650 3.7V 2300mAh
    Certification : MSDS REACH ROHS
    Price : USD2.0
    Payment Terms : 100% prepaid before shipping out
    Supply Ability : 100000PCS EACH WEEK
    Delivery Time : 7-10 days after order confirm for stock model
    • Product Details
    • Company Profile

    Rechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle Headlight

    Rechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle Headlight

    Features for Rechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle Headlight


    1. Rechargeable Li-ion Battery A level quality
    2. 100% truth capacity
    3. The height within 66mm,Diameter within 19.2mm
    4. ICR18650 3.7V 2300mAh Cylindrical Rechargeable Battery for Bicycle headlight.
    5. Higher energy density and lower weight than other rechargeable batteries.
    6. With a long cycle life about 500 times.
    7. ICR18650/INR18650/INM18650.
    8. Certification: UL,UN,ROHS.


    Specification for Rechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle Headlight

    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    Typical

    2300mAh

    Standard discharge(0.2C5A) after Standard charge

    Minimum

    2250mAh
    2

    Nominal Voltage

    3.7V

    Mean Operation Voltage

    3

    Voltage at end of
    Discharge

    3.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    4.2±0.03V
    5

    Internal Impedance

    ≤100mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

    6

    Weight

    46±3g
    7

    Standard charge

    Constant Current 0.2C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off

    8

    Standard discharge

    Constant current 0.2C5A
    end voltage 3.0V


    The Performance For Circle And Test Standard


    No.

    Item

    General Parameter

    Remark

    8

    Fast charge

    Constant Current 1C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off

    9

    Fast discharge

    Constant current 1.5 C5A
    end voltage 3.0V

    10

    Maximum Continuous Charge Current

    1 C5A
    11

    Maximum Continuous Discharge Current

    1.5C5A
    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Bare Cell

    Discharge: -20~60℃
    13

    Storage Temperature Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state

    less than 3 months: -20~40℃

    Less than 7 day : -20~65℃

    14

    Pack Dimension

    High/:66.0mm

    Max Dimension

    Diameter/: 19.2 mm

    Application for Battery Pack

    This is oem design for for Bicycle Headlight and Lthium-ion battery pack have wide range including of below

    1. Energy storgy system
    2. Solar Energy storgy
    3. Solar Street Lighting
    4. Eletric Vehicle
    5. Medical
    6. Telecom
    7. Robotic
    8. UPS


    Delivery Date


    Within 7-10days base on normal model , the quantity less than 100pcs after buyer arrange the payment and 25-35 days for OEM order

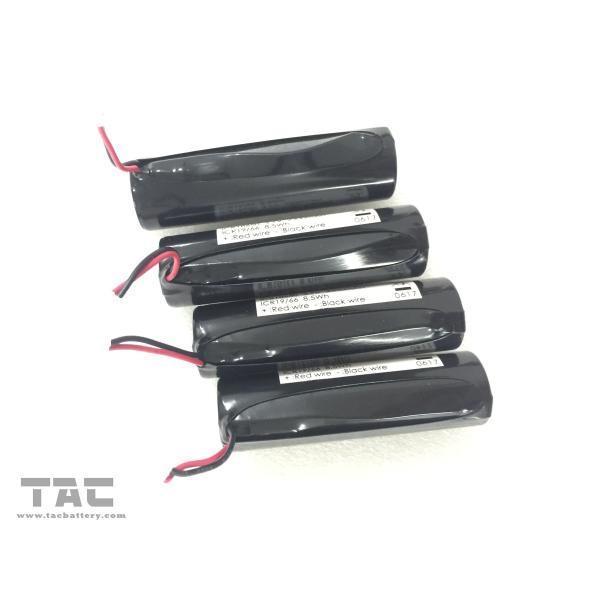

    Picture for 710112 Rechargeable Li-ion Battery ICR19/66 8.5Wh



    Rechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle HeadlightRechargeable Li-ion Battery ICR18650 3.7V 2300mAh 8.5Wh for Bicycle Headlight


    Normal Packing for Battery
    one pcs in one sponge bag and then put in the inner box , `10pcs in one box . 8-10box for one carton





    Period of Warranty

    The period of warranty is one year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.


    Storage of the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that batteries be charged about once per half a year to prevent over discharge.
