High Voltage ESS 51.2KWH Solar Power System 512V 100AH Home Energy Storage System

Ask Lasest Price
Brand Name :	ODM
Model Number :	SL512-100
Certification :	Reach,Rohs,UN38.3,MSDS,
Price :	US$9700
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100PC/month
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

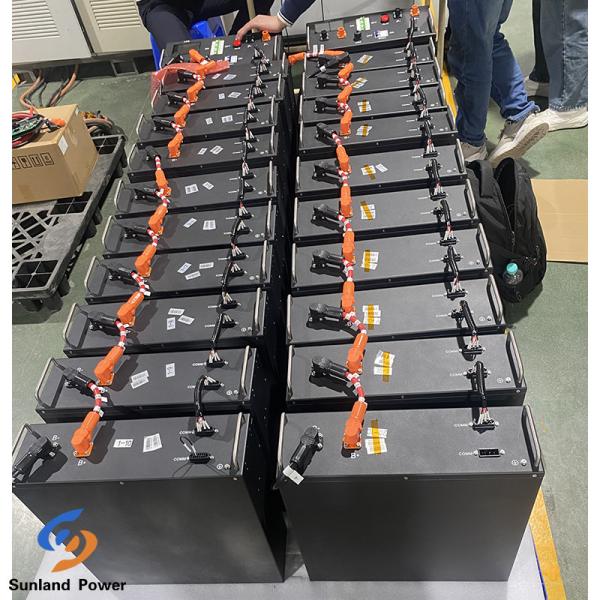

High Voltage ESS 51.2KWH Solar Power System 512V 100AH Home Energy Storage System

High Voltage ESS 51.2KWH Solar Power System 512V 100AH Home Energy Storage System

Feature:
1.The battery energy storage system is modular.

2. Each module is with 5.12kWh and can support 10 battery modules in series.

3. It has the characteristics of high integration, good reliability, long service life and wide operating temperature range.

Rack parameters

Item		parameters	Remark
series and parallel		1P160S	10pcs battery Pack
nominal capacity		100Ah	1P
nominal voltage		DC512V
work voltage range		400V~584V	Cell:2.5～3.65
nominal energy		51.2kWh	1CP
Rated charging current		50A	0.5C
maximum constant charge current		100A	25±5℃,0~100%SOC
Rated discharge current		50A	0.5C
maximum constant discharge current		100A	25±5℃,0~100%SOC
rated power	Charge	50kW	1CP
	Discharge	50kW
Operation Temperature Range (Optimal)		25±5℃	Guaranteed cycle life conditions
PACK size		440480134	Dimensions without connectors & handles
		512514134	Dimensions include connectors & handles
PACK weight		43.0kg	±1.0kg
IP IP grade		IP20
Cabinet outer dimensions		580x500x2000mm	±20mm
Weight of battery cluster		650kg	±15kg
humidity		65%±20%RH
altitude		≤3600m	＞3600m Customizable

High Voltage ESS 51.2KWH Solar Power System 512V 100AH Home Energy Storage System

Battery pack parameters table

Item	parameters	Remark
cell model	GSP50160119F,3.2V100Ah
series and parallel	1P16S
nominal capacity	100Ah
nominal voltage	DC51.2V
work voltage range	DC40～58.4V
nominal energy	5.12kWh
rated power	5.12kW
Energy Density	≥166Wh/kg
Standard charging method	1CP charge ,end total voltage 58.4V or cell @3.65V
Standard discharge method	1CP discharge ,end total voltage 40V or cell@ 2.5V
Rated charging current	50A
Rated discharge current	50A
Maximum sustainable operating current	100A
Communication Protocol	CAN
Operation Temperature Range (Optimal)	25±5℃	Guaranteed cycle life conditions
weight	45±1.0kg

High Voltage ESS 51.2KWH Solar Power System 512V 100AH Home Energy Storage System

This is a high-voltage lithium-ion battery system. Provide reliable backup power for supermarkets, banks, schools, farms, small factories, etc., smooth the load curve, and achieve load peak shaving. It can also improve the stability of renewable energy systems and promote the application of renewable energy.
